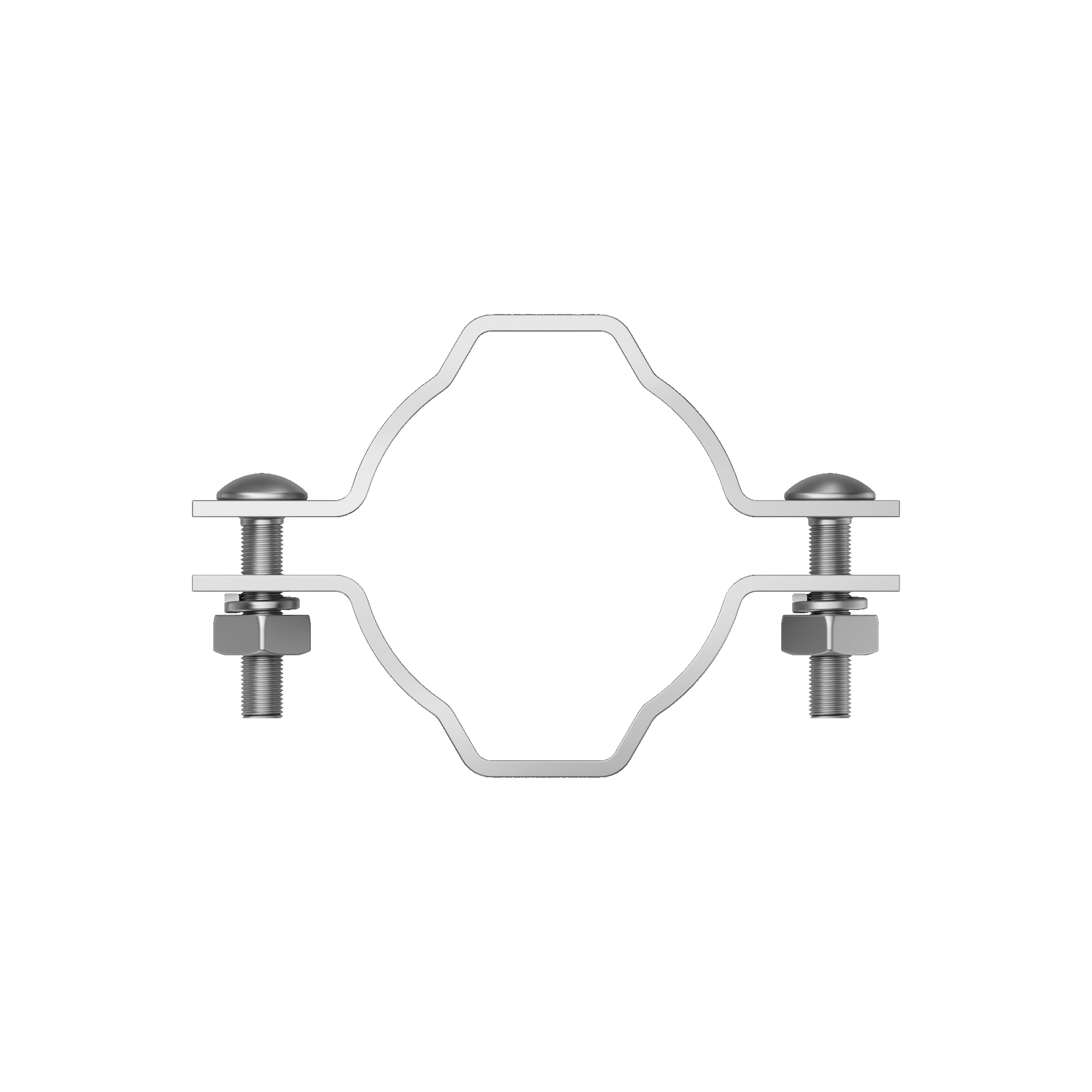

Hardware that is fastened around a post to provide rigid support for other hardware or equipment.
Hardware that is fastened around a post to provide rigid support for other hardware or equipment.
Application
Overhead power distribution networks.
Technical and specific characteristics
Material: 1010/1020 or A36 carbon steel
Finish: Hot-dip galvanizing according to NBR-6323
Mechanical resistance: According to NBR-8159
|
Code
|

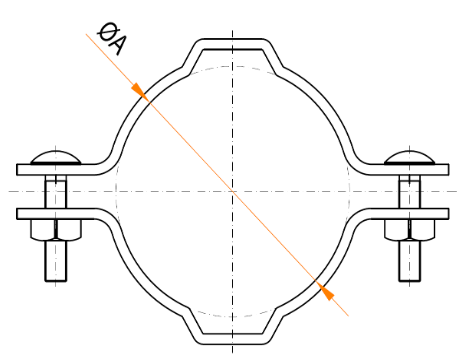

Dimension |
| ø A (mm) |
|
| 400.452 | 90 |
| 400.274 | 100 |
| 403.721 | 110 |
| 400.399 | 120 |
| 402.121 | 130 |
| 400.111 | 140 |
| 400.112 | 150 |
| 400.113 | 160 |
| 400.114 | 170 |
| 400.115 | 180 |
| 400.116 | 190 |
| 400.117 | 200 |
| 400.118 | 210 |
| 400.119 | 220 |
| 400.120 | 230 |
| 400.121 | 240 |
| 400.122 | 250 |
| 400.123 | 260 |
| 400.124 | 270 |
| 400.125 | 280 |
| 400.126 | 290 |
| 400.127 | 300 |
| 400.128 | 310 |
| 400.129 | 320 |
| 400.130 | 330 |
| 400.131 | 340 |
| 400.132 | 350 |
| 400.329 | 360 |
| 402.202 | 370 |
| 401.222 | 380 |
| 402.203 | 390 |
| 402.138 | 400 |
STANDARD
NBR-15688
